Meeting ReportInstrumentation & Data Analysis Track

Evaluation of non-local methods with and without anatomy information for improved quantitative amyloid PET imaging

Yuanyuan Gao, Murat Bilgel, Saeed Ashrafinia, Lijun Lu, Olivier Rousset, Susan Resnick, Dean Wong and Arman Rahmim
Journal of Nuclear Medicine May 2018, 59 (supplement 1) 1779;
Yuanyuan Gao
4Southern Medical University Guangzhou China
5Southern Medical University Guangzhou China
1Johns Hopkins University Baltimore MD United States
2Johns Hopkins University Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Murat Bilgel
3National Institute on Aging Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Saeed Ashrafinia
1Johns Hopkins University Baltimore MD United States
2Johns Hopkins University Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Lijun Lu
4Southern Medical University Guangzhou China
5Southern Medical University Guangzhou China
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Olivier Rousset
1Johns Hopkins University Baltimore MD United States
2Johns Hopkins University Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Susan Resnick
3National Institute on Aging Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Dean Wong
1Johns Hopkins University Baltimore MD United States
2Johns Hopkins University Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Arman Rahmim
1Johns Hopkins University Baltimore MD United States
2Johns Hopkins University Baltimore MD United States
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • Article
  • Figures & Data
  • Info & Metrics
Loading

Abstract

1779

Objectives: We aimed to make use of non-local mean (NLM) and median (NLEM) methods, with and without anatomy information, to significantly enhance quality and quantitative accuracy of PET images, with special focus on amyloid imaging.

Methods: Using anatomy information to enhance PET images has been a popular strategy, but many previous works have incorporated too much anatomy information, biasing PET images. In this study, we only use the anatomy regions as masks to restrict the search window in non-local type methods. We investigated two methods, namely non-local means (NLM) and non-local Euclidean medians (NLEM): NLM and NLM-A compute the mean of the patches in the search window to update the center pixel of the patch in the original image, while NLEM and NLEM-A use the Euclidean median. To further improve the PET images, we also implemented the anatomy-incorporated counterparts (NLM-A and NLEM-A), utilizing the anatomical region masks to restrict the search window, thus restricting usage of non-local information to voxels that belong to the same tissue. We set the overall search window size to 21[asterisk]21 and patch size to 7[asterisk]7 within a given slice. We performed two studies to evaluate these four methods. First, we utilized the classical NEMA NU-2 image quality phantom with six spheres of different diameters (10, 13, 17, 22, 28 and 37 mm). Second, we subsequently performed realistic amyloid PET simulations based on real data from human amyloid dynamic PET (11C-PIB) and MRI studies. We labeled regions including GM, WM, CSF, caudate, putamen and thalamus, as areas of interest for Alzheimer's disease research. We incorporated realistic clinical data activity distributions in our simulation studies based on participant images.

Results: Compared with the no-anatomy versions, anatomy-guided methods performed better in both studies, specifically in visual image and image roughness (spatial variance) performance. At matched noise levels, anatomy-based non-local methods (both NLM-A and NLEM-A) significantly lowered bias. For example, in GM of NLEM-A, at matched 20% noise (image roughness), the bias was reduced by 88%, and at 25% noise, the bias was lowered by 66%, and at 35% noise, the bias was lowered by 48%. The ensemble variance of these four methods looked relatively matched. In general, the effectiveness and trend of the four methods are not greatly affected by noise levels. For high noise levels, NLEM and NLEM-A perform somewhat more effectively than NLM and NLM-A in some regions (e.g. thalamus, WM), because the median operator (instead of mean operator) is less impacted by the presence of outliers. Furthermore, without anatomy guidance, NLM and NLEM use information from a very wide search window to update the image, and this can result in additional bias in the resulting image estimates. Conclusion: Overall, we have demonstrated that non-local methods in combination with anatomic guidance have a significant potential to improve quality and quantitative accuracy of amyloid PET images.

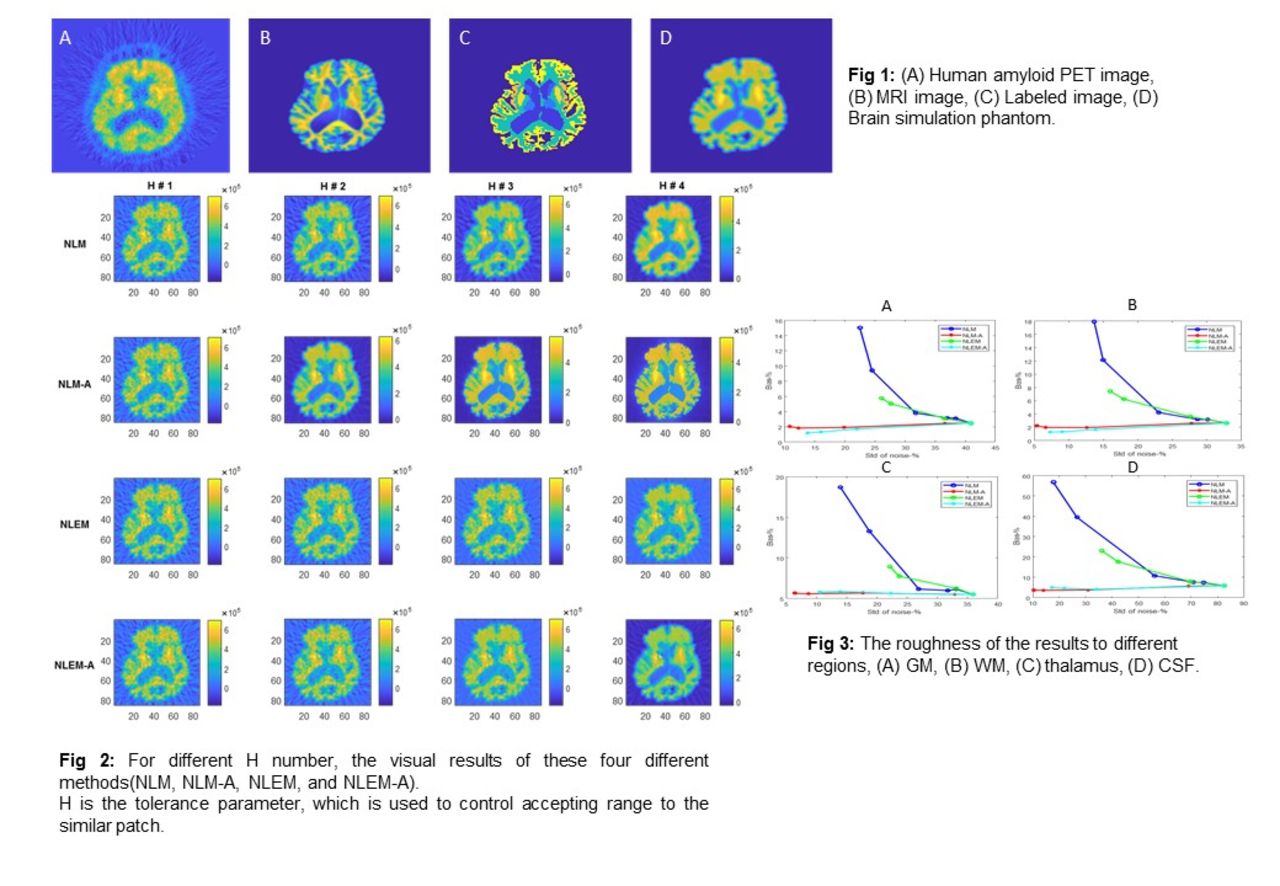

Figure
  • Download figure
  • Open in new tab
  • Download powerpoint
