Abstract
A change in tumor size is a well-validated and commonly used value for evaluating response to chemotherapy in cancer. Metabolic changes induced by chemotherapy are related to prognosis in several tumor types. However, the clinical implication of metabolic changes in patients with advanced gastric cancer (AGC) undergoing chemotherapy remains unclear. We aimed to evaluate response of tumor size and metabolism in AGC during chemotherapy and to reveal the relationship between them in view of their impact on patient survival. Methods: We prospectively enrolled patients with AGC before the initiation of first-line palliative chemotherapy. Using baseline and follow-up contrast-enhanced CT and 18F-FDG PET, we assessed the tumor diameter, SUVmax, and total lesion glycolysis in each lesion and their changes during chemotherapy at the same time. We included all lesions with the maximal longest diameters over 1 cm on CT, and each lesion was evaluated by matched 18F-FDG PET. We analyzed the association between changes in tumor metabolism and tumor size and performed outcome analysis on overall survival (OS) and progression-free survival (PFS). Results: Seventy-four patients were enrolled, and the number of all lesions included in this study was 620. Compared with adenocarcinomas, poorly cohesive carcinomas demonstrated lower SUVmax irrespective of tumor size (P < 0.001). Human epidermal growth factor receptor 2 (HER2)–positive tumors showed higher SUVmax than HER2-negative tumors (P = 0.002). The changes in SUVmax due to chemotherapy had a linear correlation with the changes in tumor size of each lesion, and a 30% tumor size reduction was associated with a 50% SUVmax reduction (P < 0.001). Total lesion glycolysis changes also correlated with tumor size changes (P < 0.001). Better OS and PFS were obtained in patients with both tumor size and SUVmax reduction than in patients with either size or SUVmax reduction only (OS, P = 0.003; PFS, P = 0.038). Conclusion: Changes in tumor metabolism induced by chemotherapy correlated with changes in tumor size in AGC. Considering both changes in metabolism and size could help predict a more accurate prognosis for AGC patients undergoing chemotherapy.
Tumor metabolism can be measured using 18F-FDG PET, and these measurements are of significant importance in predicting the prognosis in several types of cancer (1–3). AGC is a leading cause of death worldwide, and chemotherapy and targeted therapy are the cornerstones of its treatment (4–6). Appropriate evaluation of treatment response is crucial during chemotherapy, and the current evaluation in AGC is dependent on the measurement of tumor size by CT according to the RECIST (7).
Several studies have shown the benefit of 18F-FDG PET in the preoperative staging setting of gastric cancer, which can detect more metastatic lesions than CT (8–10). Early metabolic response of tumors determined using 18F-FDG PET is correlated with histologic response and reflects the prognosis in a neoadjuvant chemotherapy setting (11–13). 18F-FDG PET can also be used to detect recurrence after surgery for gastric cancer (14).
Despite the broad diagnostic applicability of 18F-FDG PET in gastric cancer, few studies have used it for response evaluation to chemotherapy in AGC. This could be attributed to the presence of well-established response evaluation methods for chemotherapy with tumor size change and to the alleged lack of a relationship between tumor metabolic response and tumor size response in AGC (7).
Therefore, the purpose of this prospective study was to evaluate response of tumor size and metabolism in AGC at the same time during chemotherapy and to reveal the exact relationship between them in view of their impact on patient survival.
MATERIALS AND METHODS
Patient Population
Patients diagnosed with AGC and candidates for first-line palliative chemotherapy were registered in this prospective cohort study at Seoul National University Hospital. Patients underwent 18F-FDG PET and corresponding contrast-enhanced CT scanning before the initiation of chemotherapy and at the time of first tumor response evaluation of the chemotherapy. The response evaluation was done after 6 wk of chemotherapy—that is, after 2 cycles of XELOX (capecitabine and oxaliplatin Q 3 wk) chemotherapy or 3 cycles of FOLFOX (fluorouracil with leucovorin and oxaliplatin Q 2 wk) chemotherapy. Clinicopathologic characteristics and survival data were also collected.
The study was approved by the Institutional Review Board of Seoul National University Hospital (H-1307-132-508), and all subjects signed an informed consent form. All procedures used in this study were performed in accordance with the guidelines of the Helsinki Declaration and its amendments.
PET/CT Protocol
Dedicated PET/CT scanners (Biograph True-Point, Biograph mCT 40, and Biograph mCT 64; Siemens) were used to acquire 18F-FDG PET/CT images. All patients fasted at least 6 h and maintained blood sugar levels less than 210 mg/dL before the injection of 5.18 MBq/kg of 18F-FDG. PET/CT images were acquired 1 h (mean, 65 min; range, 54–87 min; SD, 8) after 18F-FDG injection. The ordered-subsets expectation maximization algorithm (4 iterations and 8 subsets for Biograph True Point; 2 iterations and 21 subsets for Biograph mCTs) was applied to reconstruct the acquired images. A 5.0-mm gaussian filter was used to postprocess the reconstructed images to reduce noise and smoothen image quality. Images were analyzed using a commercial software program (Syngo.via; Siemens Medical Solutions).
Measurement of Lesions
All measurable lesions with the short-axis diameters of lymph nodes and long-axis diameters of all other lesions greater than 1 cm on CT were included, regardless of target lesion definition according to the RECIST. Lesions with dimensions smaller than 1 cm and lesions that could not be measured reproducibly on CT due to their irregular conformation were excluded (7). Therefore, primary gastric lesion without protruding mass, peritoneal involvement without sizable nodule, lymphangitic pulmonary metastasis, and malignant pleural effusion, which were observed in 55 (74.3%), 14 (18.9%), 3 (4.1%), and 3 (4.1%) patients, respectively, were not included in the analyses.
The maximal longest diameter of each lesion was measured on the axial plane of the CT, which has a slice thickness of 5 mm or less. For each lesion measured on CT, a volume of interest was placed to cover the entire tumor sufficiently on the PET scan. Tumors were segmented using a fixed threshold SUV of 2.5 in the volume of interest. The metabolic tumor volume was defined as voxel volume multiplied by voxel number in the segmented tumor on the PET scan. The average of SUVs of voxels in segmented tumor was defined as SUVmean. The SUVmax and total lesion glycolysis at an SUV of 2.5 (TLG2.5), calculated by multiplying the SUVmean and metabolic tumor volume using threshold SUVs of 2.5, were measured using PET. Measurements were repeated during follow-up imaging at the time of initial response evaluation. The mean values of size, SUVmax, and TLG2.5 of all lesions included in this study were compared between baseline and initial follow-up imaging of first-line palliative chemotherapy.
Statistical Analysis
Patients were divided into several groups according to clinicopathologic factors, and mean tumor size and metabolism in each group were compared using the Student t test. The relationship between the mean change in tumor size and SUVmax or TLG2.5 was analyzed using Pearson correlation analyses and scatterplots, and linear regression analyses were performed to obtain linear regression equations and R2 values. Cutoff values of SUVmax or TLG2.5 that predicted a tumor size reduction of 30% were found using these linear regression equations. OS and PFS were compared using Kaplan–Meier curves and log-rank tests among the groups. OS was defined as the time from initiating treatment to death, and PFS was defined as the time from initiating treatment to disease progression or any cause of death. Analyses were conducted using SPSS Statistics for Windows (version 20.0; IBM Corp.).
RESULTS
Characteristics of Patients and Tumors
Seventy-four patients were included in this study (Table 1). The median age of the patients was 61 y (age range, 28–82 y), and 53 patients (71.6%) were men. According to histologic types, most tumors were adenocarcinomas (79.7%); 20.3% of patients had poorly cohesive carcinomas. Fifty-six percent of adenocarcinomas were well to moderately differentiated, and 44% were poorly differentiated. Human epidermal growth factor receptor 2 (HER2) positivity was observed in 18.9% of the patients. Regimens for first-line chemotherapy comprised fluorouracil/leucovorin/oxaliplatin (41.9%), capecitabine/oxaliplatin (31.1%), capecitabine/cisplatin/trastuzumab (18.9%), and other regimens included capecitabine monotherapy or fluorouracil/leucovorin/irinotecan (8.1%). The median number of evaluable lesions by our definition on CT was 4, ranging from 1 to 47 per patient. A total of 59 (79.7%) patients had primary gastric lesions; 55 patients were diagnosed as stage 4 with metastatic disease, therefore no surgery was performed, and 4 patients had a secondary primary gastric cancer at the remnant stomach diagnosed long after the first curative subtotal gastric resection of their initial gastric cancer. Among these 59 patients with gastric lesions, only 4 cases of gastric lesions were reproducibly measurable on CT. The median follow-up duration was 11.7 mo (range, 1.9–31.4 mo), and 37 (50.0%) patients had died at the time of data cutoff. The median OS (mOS) was 17.4 mo (95% confidence interval [CI], 12.2–22.7 mo), and the median PFS (mPFS) was 8.0 mo (95% CI, 6.6–9.3 mo).
Patient Characteristics (n = 74)
The total number of evaluable lesions at baseline for all patients was 620 (Supplemental Table 1; supplemental materials are available at http://jnm.snmjournals.org). Of these, 516 (83.2%) were adenocarcinomas and the remaining (16.8%) were poorly cohesive carcinomas. HER2-positive lesions accounted for 26.5% of all measurable lesions. There were 4 primary lesions (0.6%), and the remaining were metastatic lesions, including 324 (52.3%) lymph nodes, 262 (42.3%) liver lesions, 11 (1.8%) bone lesions, 9 (1.5%) peritoneal seeding nodules, 5 (0.8%) adrenal gland lesions, 4 (0.6%) lesions in the adnexa of the uterus, and 1 (0.2%) soft-tissue lesion.
Baseline Tumor Size and Metabolism
There was no difference in tumor size between adenocarcinomas and poorly cohesive carcinomas (mean size, 20.6 vs. 19.4 mm; P = 0.468), but adenocarcinomas showed higher SUVmax and TLG2.5 than poorly cohesive carcinomas (mean SUVmax, 11.0 vs. 7.3, P < 0.001; mean TLG2.5, 136.7 vs. 60.8, P = 0.001) (Table 2). Among the adenocarcinomas, well-to-moderately differentiated tumors exhibited larger size than did poorly differentiated tumors (mean size, 22.4 vs. 18.2 mm; P = 0.001). Although there was no significant difference in SUVmax between these 2 tumor types (mean SUVmax, 11.3 vs. 10.6, P = 0.180), TLG2.5 was higher in well-to-moderately differentiated tumors than in poorly differentiated ones—a finding that could be explained by the difference in tumor size (mean TLG2.5, 168.5 vs. 92.1, P = 0.018). There was no significant difference in tumor size, SUVmax, and TLG2.5 between HER2-negative tumors and HER2-positive tumors. (mean size, 20.1 vs. 21.4 mm, P = 0.398; mean SUVmax, 10.2 vs. 11.0, P = 0.172; mean TLG2.5, 111.9 vs. 157.5, P = 0.220). However, compared with HER2-negative tumors, HER2-positive tumors showed a higher SUVmax in subgroup analysis, with tumor sizes of 20 mm or larger (mean SUVmax, 17.0 vs. 11.9, P = 0.002).
Baseline Tumor Size, SUVmax, and TLG2.5 of Measurable Lesions According to Pathologic Features (n = 620)
In general, lesions with a larger size had a higher SUVmax and TLG2.5 in baseline images (SUVmax, Pearson r = 0.33, P < 0.001; TLG2.5, Pearson r = 0.82, P < 0.001). According to histologic types, adenocarcinomas showed a correlation between baseline size and SUVmax, but poorly cohesive carcinomas did not show such a correlation (adenocarcinomas, Pearson r = 0.36, P < 0.001; poorly cohesive carcinomas, Pearson r = 0.14, P = 0.145).
Response of Tumor Size and Tumor Metabolism During Chemotherapy
There was no difference in amount of changes in tumor size, SUVmax, and TLG2.5 between adenocarcinomas and poorly cohesive carcinomas after chemotherapy (Table 3). There was also no difference in response between well-to-moderately differentiated adenocarcinomas and poorly differentiated adenocarcinomas. HER2-positive tumors manifested a more dramatic response of tumor size, SUVmax, and TLG2.5 than did HER2-negative tumors (mean size change, −50.2% vs. −20.8%, P < 0.001; mean SUVmax change, −66.0% vs. −45.5%, P < 0.001; mean TLG2.5 change, −91.9% vs. 10.0%, P < 0.001).
Response of Tumor Size and Tumor Metabolism in Each Lesion According to Pathologic Features (n = 620)
The change in tumor size in each lesion showed a positive correlation with a change in SUVmax or TLG2.5. Moreover, the change in SUVmax in each lesion showed a definite linearity with the change in tumor size in the scatterplot (R2 = 0.47, P < 0.001) (Fig. 1A). Using the linear regression equation, we found that a 30% tumor size reduction was related to a −50.3% (95% CI, −49.4% to −51.2%) SUVmax change. The change in size and TLG2.5 also showed a linear correlation, and a 30% of tumor size reduction was correlated with a −62.3% (95% CI, −60.9% to −63.6%) TLG2.5 change (R2 = 0.42, P < 0.001) (Fig. 1B).
Scatterplots between change in size and SUVmax (A) or TLG2.5 (B) of each individual lesion. Undetectable lesions on follow-up images (−100%) and extreme outliers (>200%) are omitted from linear regression analysis.
Survival Analysis
The patients were divided on the basis of the criteria of 30% tumor size reduction, 50% SUVmax reduction, and 60% TLG2.5 reduction, respectively, which were equivalent values in linear regression equations. All of these reductions were significant for better OS, and size and SUVmax reduction were significant for better PFS at individual analysis using the log-rank test (30% size reduction: mOS, 19.2 vs. 11.7, P = 0.013 and mPFS, 9.5 vs. 4.9, P = 0.028; 50% SUVmax reduction: mOS, 20.0 vs. 10.6, P = 0.003 and mPFS, 9.3 vs. 5.8, P = 0.023; 60% TLG2.5 reduction: mOS, 19.2 vs. 9.7, P = 0.042 and mPFS, 9.2 vs. 4.9, P = 0.216).
Survival analysis using both 30% tumor size reduction and 50% SUVmax reduction was performed to examine the additive effect of SUVmax decline in addition to size. The number of patients who achieved both 30% size and 50% SUVmax reduction, either size or SUVmax reduction, and neither size nor SUVmax reduction was 36 (48.6%), 15 (20.3%), and 23 (31.1%), respectively. There was a significant difference in OS and PFS between the group with both size and SUVmax reduction and the group with either size or SUVmax reduction (mOS, not reached vs. 11.1 mo, P = 0.003; mPFS, 9.8 vs. 6.1 mo, P = 0.038) (Figs. 2A and 2B). However, there was no significant difference between the group with either size or SUVmax reduction and the group with neither size nor SUVmax reduction (mOS, 11.1 vs. 10.6 mo, P = 0.994; mPFS, 6.1 vs. 4.9 mo, P = 0.562).

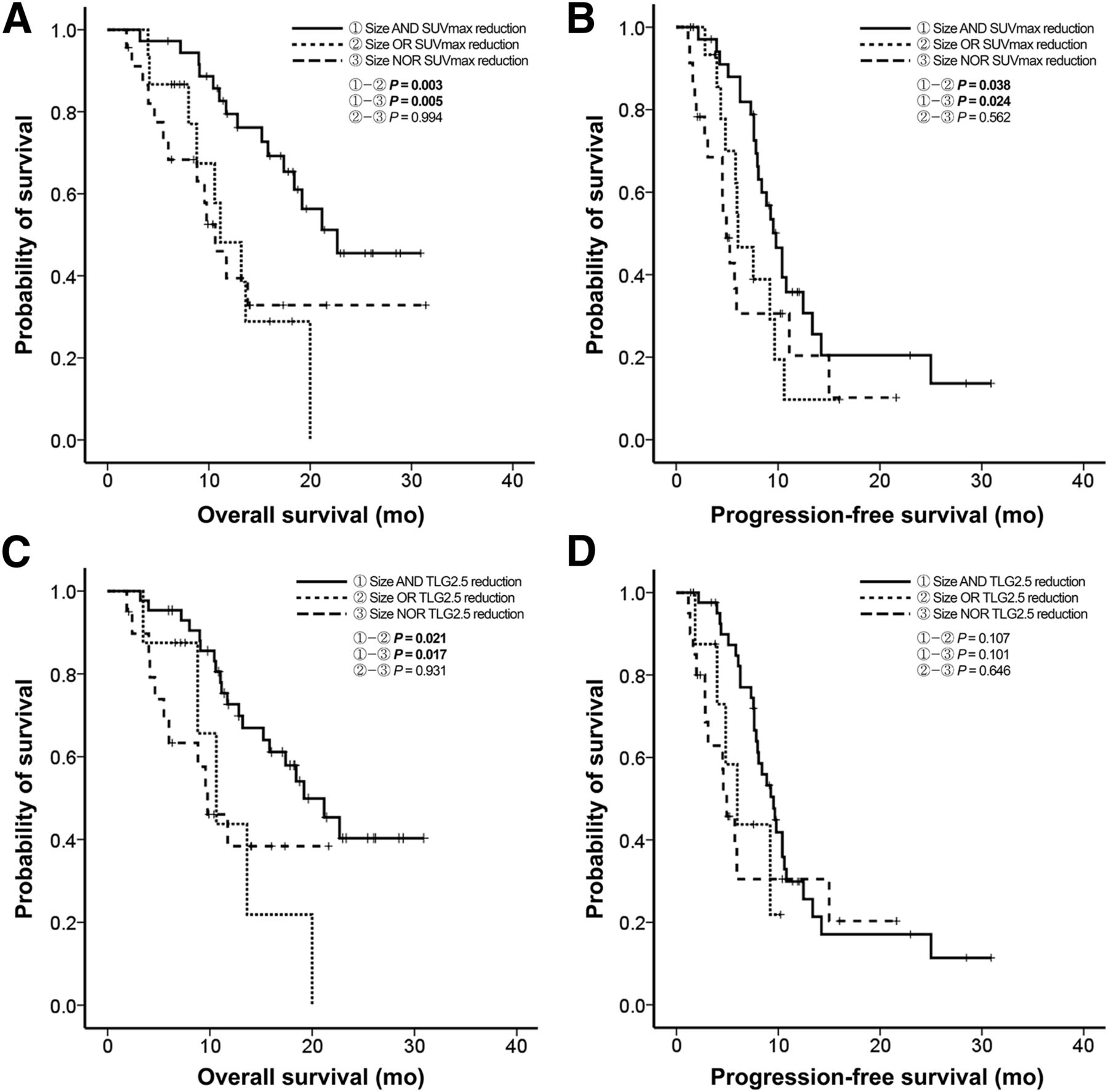

Kaplan–Meier curves for OS or PFS based on criteria of 30% tumor size reduction and 50% reduction of SUVmax (A and B) or 60% reduction of TLG2.5 (C and D). Cutoff values were determined using linear regression equations.
Similarly, we performed survival analysis using the criteria of 30% tumor size reduction and 60% TLG2.5 reduction. The number of patients who achieved both size and TLG2.5 reduction, either size or TLG2.5 reduction, and neither size nor TLG2.5 reduction was 43 (60.6%), 8 (11.3%), and 20 (28.2%), respectively (initial mean TLG2.5 of 3 patients [1 patient with adenocarcinoma, and 2 patients with poorly cohesive carcinomas] was not calculable because the SUVmax values were lower than 2.5). The results of TLG2.5 showed a tendency similar to those of SUVmax, but the statistical power of TLG2.5 was lower than that of SUVmax because of the small number of patients in the group with either size or TLG2.5 reduction (mOS: 19.2, 10.6, and 9.8 mo; mPFS: 9.5, 6.0, and 4.9 mo in groups with both size and TLG2.5 reduction, either size or TLG2.5 reduction, and neither size nor TLG2.5 reduction, respectively). Nevertheless, there was a significant difference in OS between the groups with both size and TLG2.5 reduction and with either size or TLG2.5 reduction (P = 0.021) (Figs. 2C and 2D). Additional analyses with only the target lesions, which were defined according to the RECIST (version 1.1) (7), showed an even more prominent effect of size and SUVmax/TLG2.5 reduction than of size or SUVmax/TLG2.5 reduction on OS and PFS (Supplemental Fig. 1).
In multivariate Cox proportional analyses with the variables age, histologic type, HER2 status, and previous gastrectomy, both 30% size and 50% SUVmax reduction were the significant factors for better OS and PFS (hazard ratio for OS = 4.41, P < 0.001; hazard ratio for PFS = 2.58, P = 0.002). Both 30% size and 60% TLG2.5 reduction were also the significant factors in multivariate analyses (hazard ratio for OS = 3.87, P = 0.001; hazard ratio for PFS = 2.19, P = 0.015) (Supplemental Tables 2 and 3).
DISCUSSION
This study was conducted to identify the relationship between changes in tumor metabolism measured by PET and changes in tumor size measured by CT, and to assess its impacts on survival in patients undergoing chemotherapy for AGC. Instead of measuring only the target lesions defined according to the RECIST, all reproducibly measurable lesions larger than 1 cm were included in this study for exact analyses using a large number of lesions. We also applied the analysis according to the RECIST and found similar results. Generally, the primary gastric lesion is not a suitable candidate for measuring the exact tumor size repeatedly because of its irregular conformation. For that reason, most primary lesions were not included in our analyses.
There was a significant correlation between baseline tumor size and SUVmax or TLG2.5 in each of the lesions at the pretreatment evaluation. TLG2.5 is calculated by multiplying the SUVmean and metabolic tumor volume, and the metabolic tumor volume is, conceptually, similar with tumor size. Therefore, the strong correlation between tumor size and TLG2.5 is a somewhat natural result. However, the correlation of SUVmax with size in each lesion is an interesting result, and it implies that tumor metabolism increases as each tumor lesion increases in size. The exception was poorly cohesive carcinoma. A few other studies have been conducted in the same context of this result. A study on gastric cancer demonstrated the relationship between T stage and SUVmax (15), and another study showed the correlation between the maximal diameter of primary lesion and SUVmax. In the latter study, messenger RNA level of hypoxia-inducible factor 1 α was also correlated with SUVmax; therefore, they suggested the mechanism that growth-related hypoxia induces anaerobic glycolysis and increases glucose metabolism (16).
A previous study, which analyzed primary lesions of AGC, found that the SUVmax of HER2-positive tumors was higher than that of HER2-negative tumors (17). In our study, although there was no significant difference in baseline SUVmax between HER2-positive and HER2-negative tumors in the analysis including whole lesions, HER2-positive lesions showed higher baseline SUVmax than did HER2-negative lesions in the analysis including lesions larger than 20 mm. This is because of the tendency of SUVmax to rise more steeply according to tumor size in HER2-positive tumors than in HER2-negative tumors (regression coefficient of SUVmax change per 1 mm size change: 0.22 in HER2-positive tumors, 0.08 in HER2-negative tumors, P < 0.001). Poorly cohesive carcinomas showed lower baseline SUVmax than did adenocarcinomas irrespective of tumor size in our study. Several previous studies have shown results corresponding well with our results, and all of these studies analyzed primary gastric lesions (9,18–20). Our findings provide evidence for the difference in SUVmax between two histologic types in all evaluable lesions.
Previous studies have reported that early metabolic response is related to better prognosis in gastric cancer (21–24). Ott et al. showed that early metabolic response of neoadjuvant chemotherapy within 2 wk is linked to a histopathologic response and favorable prognosis in locally advanced gastric cancer (22). Di Fabio et al. also demonstrated that SUVmax reduction within 6 wk after chemotherapy was associated with better survival in patients with metastatic gastric cancer (23). Lorenzen et al. showed the correlation between early metabolic response and subsequent size response after palliative chemotherapy in a small number of gastric and esophageal cancer patients (24). However, there was no previous study that evaluated the additive impact of PET and CT on survival with accurate comparison of them at the same time (25).
In this study, SUVmax change to chemotherapy has a definite linear correlation with size change. According to our data, clinicians can expect an approximately 50% SUVmax reduction when the lesions showed a 30% size reduction. This result would be helpful for clinicians when making a decision based on discrepant results of PET and CT after chemotherapy. Better OS and PFS were observed in the patients with a reduction in both size and SUVmax than in patients with a reduction in either size or SUVmax. Although TLG2.5 also showed results similar to SUVmax, SUVmax seems to be the more useful parameter because of its stronger linearity with size change and lesser variation. These data suggest that response assessment via a combination of CT and 18F-FDG PET may provide enhanced prediction of prognosis after chemotherapy in AGC.
A limitation of our study is the small sample size. However, this limitation was partly compensated for through the analyses including all evaluable lesions of metastatic gastric cancer. Additional studies with larger sample sizes are needed to validate these results and enable their application in clinical practice.
CONCLUSION
The reduction in tumor size after chemotherapy has a linear correlation with the reduction in tumor metabolism, and a 30% size reduction corresponds well with a 50% SUVmax reduction in gastric cancer. Considering both changes together could help predict a more accurate prognosis for patients undergoing chemotherapy for AGC.
DISCLOSURE
This study was supported by Seoul National University Hospital Research Fund (grant 25-2014-0140) to Dr. Do-Youn Oh and by a grant from the Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI), funded by the Ministry of Health & Welfare, Republic of Korea (grant HI14C1072) to Gi Jeong Cheon. No other potential conflict of interest relevant to this article was reported.
Acknowledgments
This study was partly presented at the Gastrointestinal Cancers Symposium 2016 held in San Francisco, California, USA.
