Abstract
Glioblastoma is one of the most malignant types of human cancer, and the prognosis is poor. The development and validation of novel molecular imaging biomarkers has the potential to improve tumor detection, grading, risk stratification, and treatment monitoring of gliomas. The aim of this study was to explore the potential of PET imaging of the urokinase-type plasminogen activator receptor (uPAR) in glioblastoma. Methods: The uPAR messenger RNA expression of tumors from 19 glioblastoma patients was analyzed, and a cell culture derived from one of these patients was used to establish an orthotopic xenograft model of glioblastoma. Tumor growth was monitored using bioluminescence imaging. Five to six weeks after inoculation, all mice were scanned with small-animal PET/CT using two new uPAR PET ligands (64Cu-NOTA-AE105 and 68Ga-NOTA-AE105) and, for comparison, O-(2-18F-fluoroethyl)-l-tyrosine (18F-FET). One MRI scan was obtained for each mouse to confirm tumor location. The uPAR specificity of 64Cu-NOTA-AE105 was confirmed by alignment of hematoxylin- and eosin-stained and uPAR immunohistochemistry–stained slides of the brain with the activity distribution as determined using autoradiography. Results: uPAR expression was found in all 19 glioblastoma patient tumors, and high expression of uPAR correlated with decreased overall survival (P = 0.04). Radiolabeling of NOTA-AE105 with 64Cu and 68Ga was straightforward, resulting in a specific activity of approximately 20 GBq/μmol and a radiochemical purity of more than 98% for 64Cu-NOTA-AE105 and more than 97% for 68Ga-NOTA-AE105. High image contrast resulting in clear tumor delineation was found for both 68Ga-NOTA-AE105 and 64Cu-NOTA-AE105. Absolute uptake in tumor was higher for 18F-FET (3.5 ± 0.8 percentage injected dose [%ID]/g) than for 64Cu-NOTA-AE105 (1.2 ± 0.4 %ID/g) or 68Ga-NOTA-AE105 (0.4 ± 0.1 %ID/g). A similar pattern was observed in background brain tissue, where uptake was 1.9 ± 0.1 %ID/g for 18F-fluorothymidine, compared with 0.05 ± 0.01 %ID/g for 68Ga-NOTA-AE105 and 0.11 ± 0.02 %ID/g for 64Cu-NOTA-AE105. The result was a significantly higher tumor-to-background ratio for both 68Ga-NOTA-AE105 (7.6 ± 2.1, P < 0.05) and 64Cu-NOTA-AE105 (10.6 ± 2.3, P < 0.01) than for 18F-FET PET (1.8 ± 0.3). Autoradiography of brain slides confirmed that the accumulation of 64Cu-NOTA-AE105 corresponded well with uPAR-positive cancer cells. Conclusion: On the basis of our translational study, uPAR PET may be a highly promising imaging biomarker for glioblastoma. Further clinical exploration of uPAR PET in glioblastoma is therefore justified.
Glioblastoma is the most common primary malignancy of the central nervous system in adults, with more than 10,000 new cases diagnosed annually in the United States (1,2). It is a locally aggressive brain tumor with poor prognosis, and the median survival is limited to about 15 mo from the time of diagnosis (3). One area of focus for improving this poor prognosis is development of noninvasive molecular imaging techniques for accurate tumor detection, grading, risk stratification, treatment monitoring, and recurrence detection (4). 18F-FDG still remains the most used PET ligand for brain tumor imaging worldwide, comprising more than 90% of all PET imaging studies despite having several limitations (5). To increase specificity, sensitivity, and diagnostic accuracy, several imaging ligands for brain tumors have been developed during the last decade. Of these, PET ligands based on nucleosides, amino acid analogs, and ligands interacting with oxidative metabolism, fatty acid metabolism, and hypoxia seem to be the most promising (5,6). In a clinical setting, 18F-fluorothymidine (7,8), O-(2-18F-fluoroethyl)-l-tyrosine (18F-FET) (4,9,10), and 18F-fluoromisonidazole (11,12) have been investigated with mixed results. Therefore, a method for optimal noninvasive imaging of brain tumors and risk stratification is still lacking.
Urokinase-type plasminogen activator receptor (uPAR) has been reported as a promising imaging target in several cancer types (13,14). uPAR is an extracellular receptor, and expression of uPAR has been found to be elevated in several types of cancer and to correlate with poor prognosis (15–17). In glioblastoma, uPAR expression has been reported to be elevated and to correlate with parenchymal invasion, that is, aggressiveness (18–20). Further, a recent study has shown evidence of a direct link between upregulation of the urokinase-type plasminogen activator–uPAR–extracellular signal-regulated kinase 1/2 pathway and sensitivity toward small-molecule tyrosine kinase inhibitors for the epidermal growth factor receptor (21). Together, these make uPAR a highly promising imaging target for gliomas, with the potential for diagnosis and risk stratification and for use as a tool to identify patients sensitive toward epidermal growth factor receptor inhibitors.
In our laboratory, we have developed and characterized several uPAR PET ligands (22–25), all based on a small uPAR-antagonist linear peptide denoted AE105 (26). Previous in vivo characterization studies of these uPAR PET ligands have been conducted on murine xenograft models of human cancer in which tumor cells have been inoculated subcutaneously. The advantages of these models are high throughput and easy application. However, several studies have documented limitations using these models, especially with regard to clinical relevance, because of the limited similarity between in situ tumor cell physiology and immortal cancer cell lines (27). There is consensus that when human cancer cells are inoculated in the mouse organ of human origin (orthotopic), the clinical situation is modeled more closely.
To investigate the potential of uPAR PET imaging in brain tumors, we generated two new uPAR PET ligands (64Cu-NOTA-AE105 and 68Ga-NOTA-AE105) and examined their in vivo performance in a nude mouse orthotopic brain tumor model using an in-house–developed patient-derived neurosphere glioblastoma culture. Besides uPAR PET, 18F-FET PET and MRI were also performed for comparison because 18F-FET PET has been implemented in the evaluation of brain tumors at several European institutions, including Rigshospitalet. Quantitative real-time polymerase chain reaction analysis of uPAR expression from biopsy samples of 19 patients diagnosed with glioblastoma was also included to investigate the association between uPAR expression and prognosis.
MATERIALS AND METHODS
Ethics Statement
This study was performed according to the Declaration of Helsinki and Danish legislation. Permission to collect and use patient data and material was granted by the Danish Data Protection Agency (2006-41-6979) and the ethical committee for the Capital Region of Denmark (H-C-2008-095 and KF-01-327718). Animal care and experimental procedures were performed under the approval of the Danish Animal Welfare Council.
Patient Material
The patient material consisted of tumor specimens obtained during primary surgery at Rigshospitalet from 19 randomly chosen patients diagnosed with primary glioblastoma. The 19 patients included 10 men and 9 women, with a mean age of 54.7 y (range, 34–67 y) and an Eastern Cooperative Oncology Group performance status of 0 (n = 13), 1 (n = 2), or 2 (n = 3) (data were missing for 1 patient). After primary surgery, 18 of the 19 patients received concomitant radiation and temozolomide therapy followed by up to 6 courses of adjuvant temozolomide therapy. Of these patients, 13 received corticosteroid therapy at treatment initiation. Further, at tumor progression, 10 of the patients underwent secondary operation, whereas 11 received relapse therapy with combined bevacizumab and irinotecan. Detailed descriptions of the treatments have previously been published elsewhere (1), and patient demographics are shown in Table 1.
Patient Characteristics and uPAR mRNA Expression Relative to Expression in HEK293 Cells
Quantitative Real-Time Polymerase Chain Reaction
Quantitative real-time polymerase chain reaction analysis of relative uPAR expression was performed on RNA from all 19 glioblastoma tumor samples and from U937 and HEK 293 cells, which served as assay controls because they previously were found to have relatively high and low uPAR expression, respectively (28). RNA from the glioblastoma patient tumors was isolated using TRIzol reagent (Life Technologies) and Tissue Lyser (Qiagen) before RNA purification with the RNeasy Mini KIT (Qiagen) according to manufacturer instructions. RNA from U937 and HEK 293 cells was extracted from cell pellets using QIA shredder columns and the RNeasy Mini Kit (both from Qiagen). All RNA samples were DNase-treated using the RNase-Free DNase Set (Qiagen). cDNA was synthesized and then treated with RNase H according to the manufacturer’s protocol using the SuperScript III Platinum 2-step quantitative real-time polymerase chain reaction kit with SYBR Green (Life Technologies), which was also used for the subsequent quantitative real-time polymerase chain reaction. The ΔΔCt method was used to calculate relative gene expression. The specific primers and cycling conditions for uPAR were the same as previously described (20). Data were normalized to the expression of 3 housekeeping genes (TOP1, CYC1, and EIF4A2) (PrimerDesign), for which the cycling conditions were 95°C for 15 s and 60°C for 60 s for 50 cycles, with initial melting at 95°C for 2 min.
Radiochemistry
NOTA-AE105 was purchased from ABX GmBH (Advanced Biochemical Compounds). 64Cu and 68Ga were produced as previously described in detail (24,25). NOTA-AE105 was radiolabeled with 64Cu by adding 64CuCl2 (∼150 MBq) to a vial containing 500 μL of 0.1 M ammonium acetate buffer (pH 5.5) and NOTA-AE105 (2–20 nmol). The reaction mixture was left at room temperature for 10 min; after purification (Sep-Pak C18 Light; Waters), the product was more than 97% pure. The amount of unlabeled 64Cu in the product was less than 1%, as demonstrated by radio–high-performance liquid chromatography. 68Ga labeling was performed using the fractionated method. The 68Ge/68Ga generator was eluted with 6 mL of 0.1 M HCl. Approximately 80% of the entire activity (1 mL, 450–500 MBq) was transferred to a vial containing 2–20 nmol of NOTA-AE105 and 1 mL of 0.7 M NaOAc buffer (pH 5.2). The reaction mixture was left at 60°C for 10 min, and the mixture was purified by C18 Light Sep-Pak, resulting in purity above 95%. 18F-FET was synthesized using (2S)-O-(2-tosyloxyethyl)-N-trityl-l-tyrosine-tert-butyl ester as precursor on a TracerLab MX (GE Healthcare). All reagents and FET cassettes were purchased from ABX GmBH. For analysis, a high-performance liquid chromatograph (Ultimate 3000; Dionex) was used with a 2.6-μm, 100-Å, 50 × 4.6 mm C18 column (Kinetex). The mobile phases for 64Cu-NOTA-AE105 and 68Ga-NOTA-AE105 were as follows: eluent A: 10% MeCN in H2O with 0.1% trifluoroacetic acid; eluent B: 10% H2O in MeCN with 0.1% trifluoroacetic acid. The mobile phase for 18F-FET was 98% 20 mM acetate buffer, pH 4.75, with 2% MeCN.
Orthotopic Brain Tumor Model
A glioblastoma CPH048p6 neurosphere cell culture having a stable expression of luciferase was used to establish an orthotopic glioblastoma model. This culture had previously been established from patient 19 (CPH48) (Table 1). Establishment, culturing, and luciferase transduction of this cell culture have previously been described (2). The orthotopic glioblastoma xenograft model was generated as recently described in detail (28,29). In brief, a longitudinal incision was made in the scalp, exposing the calvarium. Using a microdrill, a burr hole was created in the skull 1.5 mm to the right of the sutura sagittalis and 0.5 mm posterior to the bregma. A 10-μL cell suspension (100,000 cells) was injected at a depth of 2–2.5 mm at a rate of 60 nL/s using a 100-μL syringe with a 25-gauge needle (SGE100RN; World Precision Instruments) placed in a microinfusion pump (Micro4 controller and MicroSyringe pump controller [World Precision Instruments] and KOPF model 1770-C [Better Hospital Equipment Corp.]). The animals were housed in a climate-controlled room with a 12-h light:12-h dark cycle. They had free access to food and water during housing.
Bioluminescence Imaging
For bioluminescence imaging, the mice were injected intraperitoneally with d-luciferin (150 mg/kg of body weight) according to the scheme in Figure 2. Images were acquired using a Xenogen IVIS 100 (Caliper Life Sciences) 10 min after injection of d-luciferin.
Small-Animal PET/CT Imaging
Each mouse received a tail-vein injection of 18F-FET (10 MBq, n = 3), 64Cu-NOTA-AE105 (6 MBq, n = 3), or 68Ga-NOTA-AE105 (6 MBq, n = 3) according to the scheme in Figure 2. PET scans were acquired with a microPET Focus 120 scanner (Siemens Medical Solutions). The energy window of the emission scans was set to 350–605 keV with a time resolution of 6 ns. The acquired emission dataset was automatically stored in list mode. Each mouse was scanned 1 h after injection (64Cu-NOTA-AE105 and 68Ga-NOTA-AE105) or 0.5 h after injection (18F-FET), with a 10-min static PET scan being followed by a CT scan. CT data were acquired with a microCAT II tomograph (Siemens Medical Solutions). The x-ray tube with a 0.5-mm aluminum filter was set at 80 kVp, a tube current of 500 μA, and an exposure time of 700 ms per projection. The voxel size was 0.095 × 0.095 × 0.095 mm. During the scan, the animals were anesthetized using 2% isoflurane. All list-mode data were postprocessed into 128 × 128 × 32 sinograms using a 3-dimensional maximum a priori algorithm and into 256 × 256 × 95 matrices with a isometric voxel size of 0.43 mm3. The resolution of the PET scanner was 1.5 mm at the center of the field of view and 1.8 mm at 38 mm off-center using a 3-dimensional maximum a priori algorithm. All results were analyzed using Inveon software (Siemens Medical Solutions), and tracer uptake was expressed as percentage injected dose (%ID) per gram of tissue.
MRI
MRI experiments were performed on a Biospec 7.0 (Bruker BioSpin). A TurboRare T2-weighted protocol was used to generate transverse and coronal images. Eight transverse slices and 12 coronal slices 0.5 mm thick were acquired using a repetition time of 2,500 ms and an echo time of 33 ms. A 20 × 20 mm field of view was sampled into a 256 × 256 mm matrix, resulting in a spatial resolution of 0.078. The MR images were then transferred in DICOM format into the Inveon software for analysis.
Autoradiography
The distribution pattern of 64Cu-NOTA-AE105 in resected tumors was determined by exposing tumor sections to phosphor imaging screens for 24 h. The sections were interpreted using a phosphor imaging system (Cyclone Plus; Perkin Elmer) to form photostimulated luminescence images of 64Cu-NOTA-AE105 microregional distribution. Tumor slides were subsequently frozen and stored at −80°C degrees until immunohistochemical analysis.
Immunohistochemistry
Standard hematoxylin and eosin staining was performed together with uPAR staining on freshly frozen slides. For uPAR staining, recombinant human uPAR antibody R2 was used as previously described (30,31). uPAR immunostaining was performed as previously described (32), with minor modifications. Endogenous peroxidase activity was blocked by incubation in a 1% (v/v) hydrogen peroxide–water solution for 15 min. The primary rabbit polyclonal antibody against human uPAR (33) was diluted in antibody diluent (S3022; Dako) and incubated overnight in Shandon racks (Thermo Fisher Scientific) at a concentration of 1.8 μg/mL. Subsequently, the primary antibodies were detected with EnVision reagent (Dako), with antirabbit IgG horseradish peroxidase–conjugated polymers (K4003; Dako). The reactions were visualized by incubating the sections with NovaRED (Vector Laboratories) according to the manufacturer’s instructions and counterstaining with Mayer hematoxylin.
Statistical Analysis
Statistical analyses were performed using Prism, version 6.0 (GraphPad Software, Inc.) for Mac OS X (Apple). Treatment groups were compared using 1-way ANOVA. Data are presented as mean ± SEM if not stated otherwise. A P level of less than 0.05 was considered statistically significant. Survival analysis was performed using the Kaplan–Meier method and the log-rank test.
RESULTS
uPAR Gene Expression in Glioblastoma Patients
Tumor samples from 19 patients diagnosed with glioblastoma were examined for uPAR messenger RNA expression, and all samples were positive (Table 1; Fig. 1A). In addition, when compared with human embryonic kidney 293 cells, uPAR expression was higher in 18 of 19 glioblastoma patients. In most (13/19), expression of uPAR was more than 2-fold higher, with 3 patients having an increase of more than 10-fold, thus confirming the potential of uPAR as a promising target for imaging of glioblastoma. Survival analysis, using a 3-fold increased uPAR as the cutoff, revealed a significantly shorter overall survival in patients with high uPAR expression (P = 0.04) (Fig. 1B). No differences in age at diagnosis, sex, performance status, extent of primary operation, corticosteroid use, number of temozolomide series received, or reoperation were found between the two groups. In contrast, there was a tendency toward a correlation between uPAR expression levels and bevacizumab/irinotecan relapse therapy (P = 0.05) (Table 1). Nine of 11 patients in the low-uPAR group (uPAR < 3), for example, received additional treatment with bevacizumab/irinotecan, whereas this therapy was given to only 2 of 7 patients in the high-uPAR group.
(A) Relative uPAR messenger RNA levels in 19 patients diagnosed with glioblastoma compared with HEK293 kidney cells. Included in the analysis is human leukemic monocyte lymphoma cell line U937, previously shown to be highly positive for uPAR. Cancer cells from patient 19 (CPH048) were used to establish cell culture for generation of orthotopic glioblastoma mouse model in this study. (B) Significantly shorter overall survival (P = 0.04) in 19 patients diagnosed with glioblastoma stratified according to uPAR expression in tumor using Cox regression analysis.
(A) Schematic of procedure for generating orthotopic glioblastoma mouse model. (B) Weekly bioluminescence imaging (BLI) to monitor tumor growth.
Orthotopic Glioblastoma Xenograft Model
Cultured glioblastoma neurospheres from patient 19 (CPH048) were used to establish orthotopic glioblastoma xenografts as illustrated in Figure 2A. Tumor take and growth were monitored using bioluminescence imaging, and tumor lesions could be identified as early as 3 wk after inoculation of the neurospheres (Fig. 2B).
Radiochemistry
Two uPAR PET ligands were produced in this study for, what was to our knowledge, the first time. Labeling of NOTA-AE105 with 68Ga and 64Cu was investigated using different amounts of precursor to increase the specific activity. A high yield was observed for both ligands using 2–20 nmol of NOTA-AE105 (Fig. 3A). A labeling yield of 70%–80% (2 nmol) to 90%–95% (20 nmol) was found for both ligands. 64Cu-NOTA-AE105 had a higher yield than 68Ga-NOTA-AE105 at all levels investigated. For all in vivo PET studies, 2 nmol of precursor were used, resulting in a specific activity of approximately 20 GBq/μmol for both ligands. After Sep-Pak purification, the radiochemical purity was more than 98% for 64Cu-NOTA-AE105 (Fig. 3B) and more than 97% for 68Ga-NOTA-AE105 (Fig. 3C). The final product was diluted in phosphate-buffered saline ready for injection.
(A) Labeling efficiency with 68Ga and 64Cu using different amounts of NOTA-AE105 precursor (mean ± SD, n = 3). (B and C) Chemical structures of 64Cu-NOTA-AE105 (B) and 68Ga-NOTA-AE105 (C) together with representative high-performance liquid chromatogram of final product after Sep-Pak purification using 2 nmol of precursor.
PET/CT and MRI
uPAR PET/CT and MRI were conducted 5–6 wk after inoculation of the xenografts, with bioluminescence imaging confirming the orthotopic glioblastoma tumors. High image contrast, resulting in clear tumor delineation, was found for both 68Ga-NOTA-AE105 and 64Cu-NOTA-AE105 (Fig. 4). Coregistration with MRI confirmed the tumors and corresponded with the uPAR PET hot spot. Additionally, 18F-FET PET/CT was performed on the same cohort of mice. In both tumor and background brain tissue, an increased level of absolute 18F-FET uptake, in comparison with 68Ga-NOTA-AE105 and 64Cu-NOTA-AE105 uptake, was found (Fig. 4). To investigate the specificity of uPAR PET uptake in tumors, uPAR PET/CT, 18F-FET PET, and MRI were performed on a cohort of mice with no tumor cells inoculated (denoted normal mouse in Fig. 4). Similarly low uptake in normal brain tissue was observed for all 3 PET ligands in all mice, both tumor-inoculated and normal. This finding indicates that accumulation of the uPAR PET ligands in the brain is tumor-mediated.
Representative coronal PET images of mouse with orthotopic patient-derived glioblastoma tumor (arrows) and of normal mouse after 18F-FET, 64Cu-NOTA-AE105, and 68Ga-NOTA-AE105 injection. MR image of same mouse brain is shown at bottom.
Quantitative analysis of all PET/CT images found a significantly higher tumor-to-background (T/B) ratio for both 64Cu-NOTA-AE105 (P < 0.01) (Fig. 5A) and 68Ga-NOTA-AE105 (P < 0.001) (Fig. 5B), thus resulting in high-contrast images. Tumor uptake of 64Cu-NOTA-AE105 was 1.2 ± 0.4 %ID/g, with background brain uptake of 0.11 ± 0.02 %ID/g in tumor mouse brains and 0.07 ± 0.01 %ID/g in normal mouse brains without tumor (Fig. 5A). The tumor uptake was 0.4 ± 0.1 %ID/g for 68Ga-NOTA-AE105, whereas similarly low background uptake was found in tumor mouse brains (0.05 ± 0.01 %ID/g) and normal mouse brains (0.06 ± 0.02 %ID/g) (Fig. 5B). Higher absolute tumor uptake was seen for 18F-FET PET, at 3.5 ± 0.8 %ID/g (Fig. 5C). However, the background uptake in both tumor mouse brains and normal mouse brains was also higher, at 1.9 ± 0.1 %ID/g and 1.2 ± 0.1 %ID/g, respectively, resulting in a significantly higher T/B ratio for both 68Ga-NOTA-AE105 (7.6 ± 2.1, P < 0.05) and 64Cu-NOTA-AE105 (10.6 ± 2.3, P < 0.01) than for 18F-FET PET (1.8 ± 0.3) (Fig. 5D). 68Ga-NOTA-AE105 and 64Cu-NOTA-AE105 did not significantly differ.
Uptake in tumor, hemisphere contralateral to tumor (tumor brain), and normal brain with no tumor (normal brain) 1 h after injection of 64Cu-NOTA-AE105 (A) or 68Ga-NOTA-AE105 (B) and 0.5 h after injection of 18F-FET (C). (D) Calculated T/B ratios for all 3 PET ligands. Backgr. = background.
Ex Vivo Correlation Between uPAR PET and uPAR Expression
Hematoxylin and eosin staining confirmed that tumor cells were primarily in the ventricle of the brain (Fig. 6A) and corresponded well with uPAR-positive cancer cells (Fig. 6B). Autoradiography of the same slide confirmed that the accumulation of 64Cu-NOTA-AE105 corresponded to uPAR-positive cancer cells (Fig. 6C), thus providing strong evidence of the specificity of the uPAR PET ligand.

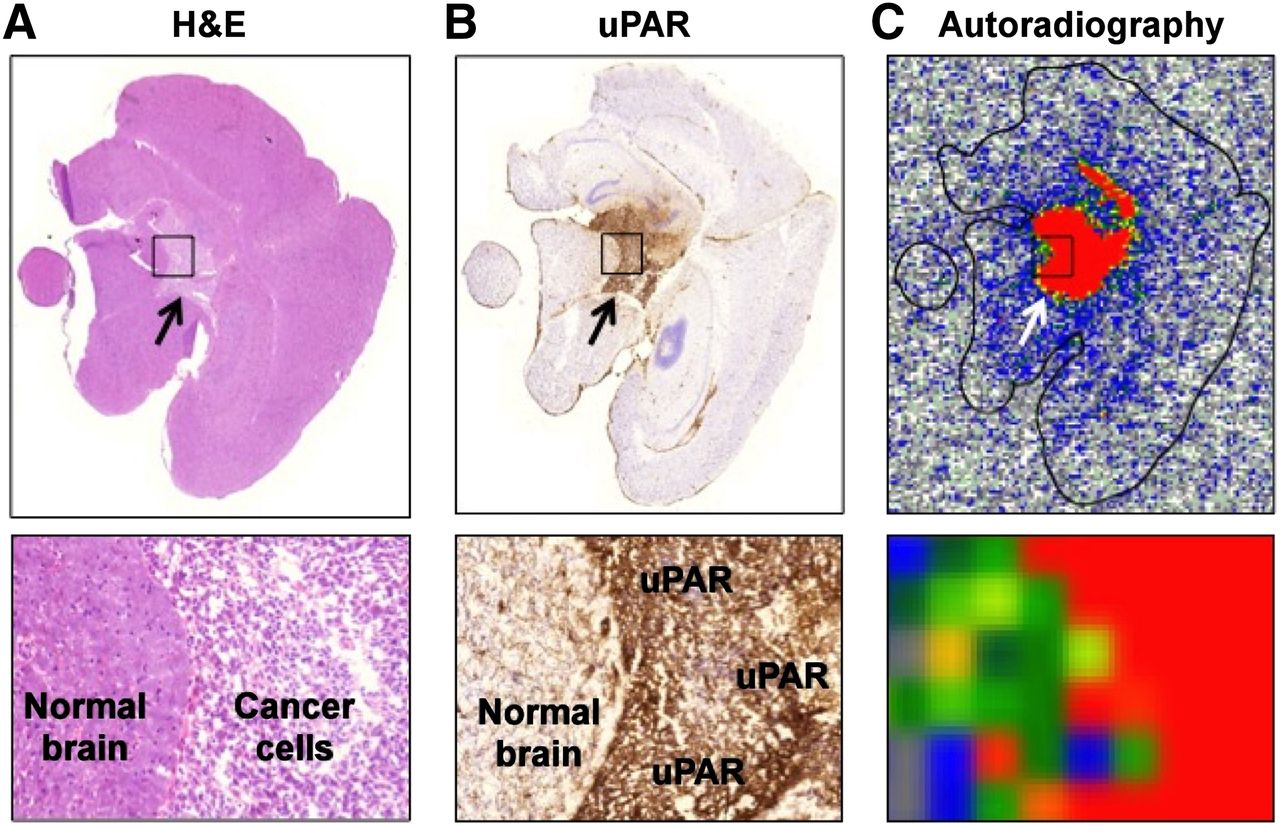

Immunohistochemistry and autoradiography of mouse brain containing tumor. Standard hematoxylin and eosin staining (A) was performed together with uPAR staining (B), and distribution pattern of 64Cu-NOTA-AE105 was determined using autoradiography (C). High similarity was found between human cancer cells, uPAR staining, and distribution of activity (arrows). High magnification of area within black square is shown at bottom right.
DISCUSSION
Given that glioblastoma has a poor prognosis due, partly, to lack of an optimal method for diagnosis, risk stratification, and treatment monitoring, the development of novel, noninvasive molecular imaging techniques remains a clinical need. To examine whether PET tracers targeting uPAR can be of potential use here, we developed such tracers and evaluated their relevance for clinical use, in part through preclinical investigations in an orthotopic glioblastoma mouse model and in part through uPAR expression analysis in patient glioblastoma tumors.
In glioblastoma, the expression and role of uPAR have previously been investigated by others (18,20,34,35). Common to all studies was the confirmation of high uPAR expression in high-grade glioma (World Health Organization grades III and IV) and low or barely detectable expression in normal brain tissues and low-grade gliomas (World Health Organization grade II). In addition, a significant correlation between increased uPAR expression and increased glioma tumor grade has been reported (18). These results are in line with the expression analysis in our cohort of 19 patients, all of whom were diagnosed with glioblastoma. Eighteen of 19 patients had elevated uPAR expression, ranging from 2- to 10-fold compared with low-expressing reference cells. Also, to our knowledge we are now the first to present data indicating that elevated uPAR expression in glioblastoma significantly correlates with overall survival. Use of bevacizumab/irinotecan relapse therapy tended to differ between the two groups (P = 0.05). The clinical decision to use bevacizumab/irinotecan in only 2 of 7 patients in the high-uPAR group most likely reflects an objective assessment of the poor performance of individual patients at the time of relapse. In contrast, 9 of 11 patients in the low-uPAR group received relapse therapy, thus reflecting an overall better performance status in this group at the time of relapse. However, because of the limited number of patients in our cohort and the heterogeneity in their treatment profiles, a larger study will have to confirm our data. Given the elevated expression in glioma (especially high-grade glioma), the prognostic value, and the recently found link between upregulation of the urokinase-type plasminogen activator–uPAR–extracellular signal-regulated kinase 1/2 pathway and sensitivity toward small-molecule epidermal growth factor receptor tyrosine kinase inhibitors (21), uPAR seems to be a promising target for noninvasive imaging in glioblastoma.
Orthotopic tumor models are regarded as superior to traditional subcutaneous models, as the microenvironment is important for tumor development and compound delivery (36). The use of different noninvasive imaging modalities, including PET, makes monitoring of tumor development in orthotopic models feasible. In this study, we used an in-house–established orthotopic mouse model to investigate the potential of peptide-based uPAR PET imaging in a clinically relevant model of glioblastoma. Our 18F-FET PET T/B ratio (1.8 ± 0.3) was in the mid range of those reported in several clinical studies (0.7–3.2) (4,9), further underlining the clinical relevance of our model.
A small difference in radiolabeling efficiency was observed between the two uPAR PET ligands (Fig. 2A), with efficiency being higher for 64Cu-NOTA-AE105. In vivo, absolute tumor uptake was higher for 64Cu-NOTA-AE105 than for 68Ga-NOTA-AE105. However, the higher absolute uptake also caused higher background uptake, thus resulting in similar T/B ratios for the two ligands as shown in Figure 5D.
The high T/B ratios found for our uPAR PET ligands (7.6 ± 2.1 and 10.6 ± 2.3 for 68Ga-NOTA-AE105 and 64Cu-NOTA-AE105, respectively) indicate that uPAR PET might be a promising method for tumor assessment in glioblastoma. Investigation of the potential of uPAR PET as a tool for early identification of epidermal growth factor receptor tyrosine kinase inhibitor sensitivity also seems intriguing. In addition, because of the prognostic value of uPAR expression, uPAR PET might be used for risk stratification in glioblastoma. However, future clinical studies are needed to further explore these hypotheses. Importantly, the close similarity between uPAR staining and accumulation of activity (64Cu-NOTA-AE105) as shown in Figure 6 confirms the high selectivity of this uPAR-targeting peptide and is in line with our previous findings across 3 human cancer cell lines, for which there was a close correlation between tumor uptake and uPAR expression (25).
One aspect to bear in mind is the high species specificity of our uPAR-binding peptide, with binding affinity having been shown to be 200-fold lower to mouse uPAR than to human uPAR (31). This species specificity could partly explain the low uptake in background brain tissue and the correspondingly high T/B ratio compared with 18F-FET PET, since only mouse uPAR is expressed in normal brain tissue whereas 18F-FET PET is species-independent. However, in view of results showing low or undetectable levels of uPAR in normal brain tissue (20), the T/B ratio in a clinical setting would presumably be satisfying, exemplified by the 15-fold increased level of uPAR messenger RNA expression compared with low-grade gliomas and normal brain tissues reported by Yamamoto et al. (20). The blood–brain barrier is another important aspect when new PET tracers are evaluated for brain tumor imaging (37), and whether this factor affects our uPAR tracer remains to be elucidated.
On the basis of recently published studies on the performance of 18F-FET PET in glioblastoma (4,9), there seems to be a consensus that 18F-FET PET has value in defining the optimal site for biopsy. However, 18F-FET PET has limited specificity for the detection of primary brain tumors (10). Because uPAR expression is primarily at the invasive edge and has prognostic value in glioma patients, uPAR PET may reveal additional information about tumor grade and be used for risk stratification in glioblastoma.
CONCLUSION
We found uPAR PET to be a promising imaging modality for glioblastoma based on preclinical data from an orthotopic glioblastoma mouse model using two new uPAR PET ligands and on human uPAR expression data from glioblastoma patient tumor samples.
DISCLOSURE
The costs of publication of this article were defrayed in part by the payment of page charges. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 USC section 1734. No potential conflict of interest relevant to this article was reported.
