Abstract
Neuroinflammation plays a significant role in Alzheimer disease (AD), and translocator protein (TSPO) PET imaging allows us to quantify this process. However, the binding of second-generation TSPO tracers depends on the TSPO genotype coded by the rs6971 single-nucleotide polymorphism, with a 40%–50% increase in BP in high-affinity binders (HABs) compared with mixed-affinity binders (MABs), whereas low-affinity binders (LABs) are unsuitable for evaluation. Hence, several studies are using either HAB alone or HAB and MAB subjects. To translate the findings of neuroinflammation studies to the entire population, it is crucial to establish the influence of TSPO genotypes on AD. Here, we investigated whether different TSPO genotypes influence cognitive function, amyloid load, and disease progression over time. Methods: We evaluated 798 subjects (225 control, 388 with mild cognitive impairment [MCI], and 185 with AD) from the Alzheimer’s Disease Neuroimaging Initiative database at baseline and during follow-up. All subjects were screened for TSPO genotype and underwent detailed clinical and neuropsychologic assessments yearly for 4 y. Of the 798 subjects, 255 also had T1- and T2-weighted MR imaging and amyloid PET with 11C-Pittsburgh compound B or 18F-florbetapir. Results: We demonstrated that all TSPO binding groups (HAB, MAB, and LAB) have same level of amyloid load in AD and MCI subjects. We also demonstrated that the prevalence is 50.3% for HAB, 41.2% for MAB, and 8.5% for LAB, without a statistical difference among the AD, MCI, and control groups. During longitudinal follow-up, the mean change in neuropsychometric test scores on the Mini–Mental State Examination, the cognitive and modified Alzheimer Disease Assessment Scales (ADASs), and the Geriatric Depression Scale over time were similar in AD and MCI subjects among the 3 TSPO binding groups. Analysis of the covariates showed that diagnostic group (control, MCI, AD), apolipoprotein E4 status, and sex had a significant effect on decline on the modified Alzheimer Disease Assessment Scale (>3 points of the scale), but age and TSPO genotype did not. Conclusion: This study suggests that information obtained from evaluating a subgroup of AD or MCI subject using second-generation TSPO tracers can be translated to the entire AD and MCI population. Thus, we can study fewer AD subjects in evaluating new antineuroinflammatory and antimicroglial agents in intervention studies and in observational studies evaluating the role of neuroinflammation.
Neuroinflammation plays a significant role in Alzheimer disease (AD) and other neurodegenerative diseases. Studies are evaluating the influence of neuroinflammation on neurodegeneration, and therapeutic agents against these targets are still under clinical evaluation to prevent neurodegeneration in AD (1). Before commencing a large phase 3 study, it is essential to determine whether these agents can suppress brain inflammation. Neuroinflammation is characterized by an increase in 18-kDa translocator protein (TSPO) expression and is assessed in vivo by the use of TSPO PET. TSPO overexpression after microglial activation (2) can be imaged via binding of PET ligands such as 11C-(R)-PK11195 (1-[2-chlorophenyl]-N-methyl-N-[1-methyl-propyl]-3-isoquinoline carboxamide). AD subjects and a proportion of subjects with mild cognitive impairment (MCI) show a 20%–35% increase in microglial activation in the frontal, temporal, parietal, occipital, and cingulate cortices (P < 0.05) (3–6). Currently, several second-generation TSPO ligands (11C-PBR28, 11C-DPA713, and 18F-GE180) (7–9) have been developed with the aim of achieving higher affinity and better signal-to-noise ratio than is possible with 11C-(R)-PK11195 PET. However, their uptake is dependent on TSPO phenotype—high-affinity binders (HABs), low-affinity binders (LABs), and mixed-affinity binders (MABs) (10,11)—with a 40%–50% increase in binding potential for HABs compared with MABs, whereas LABs are unsuitable for evaluation. It is now clear that a nonsynonymous polymorphism of TSPO, coded by the rs6971 single-nucleotide polymorphism, affects the binding affinity of these tracers (10,11). This single-nucleotide polymorphism in exon 4 of the TSPO gene causes an alanine-to-threonine substitution in position 147. The Ala/Ala TSPO genotype (wild-type) results in high-affinity binding, whereas Ala/Thr results in mixed-affinity binding, and Thr/Thr results in low-affinity binding. MABs have 40%–50% lower binding potential for TSPO than do HABs (10–12). Because of the lack of binding in LABs, they are unsuitable for evaluation. Hence, several natural progression and intervention studies are evaluating only HAB subjects. Apart from the binding of the PET tracer, TSPO gene mutation was previously found to be associated with a functional alteration that reduces peripheral lymphocyte allopregnanolone production (13). Given that neurosteroids such as allopregnanolone may play a role in neuronal survival, favoring neurogenesis and preventing apoptosis (14), it is important to establish whether there is a link between the Thr 147 TSPO genotype and AD development and progression, especially if TSPO genotypes become a discriminating factor for selecting AD patients for neuroinflammation studies. To our knowledge, no study has yet evaluated the clinical impact of TSPO genotypes on AD. If the amyloid load and deterioration of cognitive function (clinical progression) were similar in the 3 TSPO subgroups of AD and MCI subjects, information obtained from HABs alone could then be generalized to all AD or MCI patients. Here, we hypothesized that the distribution of amyloid deposition and the progression of disease would be the same in all TSPO subgroups within the same diagnostic group. We investigated the influence of different TSPO genotypes on amyloid load and neuropsychometric performance at baseline and during follow-up in AD, MCI, and healthy control subjects.
MATERIALS AND METHODS
Our study population was drawn from the ADNI database (http://adni.loni.usc.edu/). The institutional review board approved the study, and all subjects gave written informed consent. A subset of 798 ADNI subjects was selected and was genotyped with TSPO rs6971 as a part of this study. This subset comprised 225 control, 388 MCI, and 185 AD subjects. MCI subjects were enrolled if they had Mini–Mental State Examination (MMSE) scores of between 24 and 30 (inclusive), as described in more detail on the ADNI website. Participants underwent apolipoprotein E (ApoE) genotyping and were monitored longitudinally at 6- to 12-mo intervals for cognitive function with multiple tests, including the MMSE and Alzheimer Disease Assessment Scale (ADAS) (cognitive [ADAS-Cog] and modified [ADAS-Mod]), Clinical Dementia Rating (CDR), and Geriatric Depression Scale (GDS). Among the cohort of 798 subjects, 255 had T1- and T2-weighted MR imaging and PET evaluation for amyloid burden, 188 had 18F-florbetapir PET (15), and 67 had 11C-Pittsburgh compound B PET (16).
Image Analysis
A complete description of MR imaging and amyloid data acquisition is available on the ADNI website (http://www.adni-info.org/Scientists/ADNIStudyProcedures.aspx). Image analysis was done as described previously with SPM8 (Wellcome Trust Centre for Neuroimaging) using MR imaging for creating the object map (17). For 18F-florbetapir and 11C-Pittsburgh compound B, we used 1.36 and 1.4, respectively, as the thresholds for amyloid positivity for the mean cortical regions of interest normalized to cerebellar standardized uptake value ratio, based on the range of control in previous studies (18–20).
Genetics
Individuals were genotyped using the 610-quad array (Illumina), as described by Yoder et al. (10). No quality control has been performed on the publicly available ADNI Genome-Wide Association Study dataset; therefore, the data were subjected to quality control filtering before analysis. This filtering retained individuals with missing genotype rates of less than 0.05, mean autosomal heterozygosity between 0.30 and 0.36, and mean X-chromosome heterozygosity either less than 0.02 for men or between 0.28 and 0.42 for women.
Statistical Analysis
Statistical analysis was performed using SPSS Statistics, version 21 (IBM). The effects of demographic variables were evaluated with factorial ANOVA. Associations between groups were evaluated using Pearson correlation analysis. A 2-sample t test for continuous variables and χ2 test for categoric variables were used to compare baseline variables. Kaplan–Meyer survival analysis was done using an ADAS-Mod increase of more than 3 as the significant cognitive decline event (21). Log-rank Mantel–Cox testing was used to compare survival curves for each genotype. Cox proportional hazards regression was used to identify baseline variables associated with cognitive decline. The sample size of our cohort was sufficient to warrant a power of regression analysis of more than 90% with an α error of 0.05.
RESULTS
Detailed demographic data and baseline parameters are given in Table 1. Mean age (±SD) was 75.3 ± 6.8 y for the entire cohort and 75.9 ± 5.0, 74.8 ± 7.3, and 75.4 ± 7.5 for the control, MCI, and AD groups, respectively. The 3 groups did not significantly differ in age (P >> 0.05).
Baseline Demography
Baseline Data
The prevalence of genotypes among diagnostic groups is reported in Table 2. The prevalence of these genotypes did not significantly differ among the AD, MCI, and control groups on χ2 testing (P = 0.691). The prevalence of the Thr allele (both in homozygotes and in heterozygotes) is reported in Table 3 and did not significantly differ among groups (P >> 0.05): the respective odds ratios and 95% confidence intervals (CIs) were 1.24 and 0.89–1.73 for the control versus MCI groups, 0.87 and 0.61–1.24 for the MCI versus AD groups, and 1.09 and 0.73–1.60 for the control versus AD groups.
Prevalence of the TSPO Genotypes
Odds Ratio of the TSPO Genotypes, Heterozygote and Homozygote, and Risk of Dementia
The mean baseline parameters clustered by TSPO genotype are reported in Table 4. No differences in sex, age, MMSE, ADAS-Cog, ADAS-Mod, or GDS were found among the different TSPO genotypes (P >> 0.05) (Fig. 1). The subgroup of 255 subjects who had amyloid scans did not significantly differ from the rest of the cohort in sex and age even when stratified both for diagnostic group and for TSPO genotype. There was no difference in the prevalence of TSPO genotypes in the amyloid subgroup. Within the same diagnostic group, similar distributions of amyloid deposition in Thr/Thr, Ala/Thr, and Ala/Ala were found. Examples of individual parametric images of amyloid deposition among diagnostic groups and TSPO genotypes are shown in Figure 2.
Baseline Characteristics of the 3 TSPO Genotypes
Baseline mean MMSE, ADAS-Cog, and ADAS-Mod scores stratified by diagnostic group and genotype. No significant differences were found for any neuropsychologic test across the 3 genotypes (P > 0.05). Error bars show 95% CI.

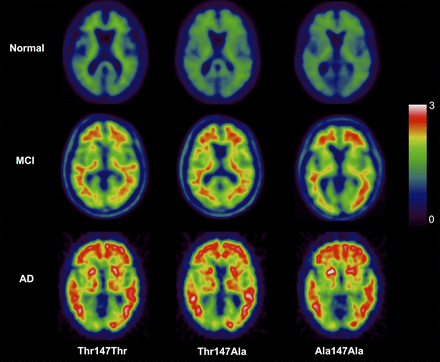

Target-to-cerebellar ratio images of amyloid deposition. Each row represents an individual subject from each of the 3 diagnostic groups, and each column represents an individual scan from each of the 3 genotypes.
As anticipated, a significant difference in the prevalence of subjects with the ApoE4 genotype was found among groups (P < 0.001). Patients with AD had the greatest percentage of ApoE4 (17.9%), followed by patients with MCI (12.4%); 84.2% of AD patients and 63.5% of MCI patients were amyloid-positive, whereas 31.3% of controls were amyloid-positive (P < 0.01). TSPO genotypes did not correlate with ApoE4 genotypes. At baseline, as expected, a significant difference between diagnostic groups was found for MMSE, ApoE4, amyloid status, ADAS-Cog, ADAS-Mod, CDR, and GDS (P < 0.01) (Table 1).
Longitudinal Data
The mean decline in MMSE at 36 mo was −0.08 ± 0.60, −0.62 ± 2.05, and −1.16 ± 1.88 for control, MCI, and AD subjects, respectively; the mean annual decline in ADAS-Cog was 0.13 ± 1.23, 0.99 ± 2.68, and 2.45 ± 5.63, respectively; and the mean annual decline in ADAS-Mod was 0.23 ± 1.8, 1.20 ± 3.1, and 1.05 ± 8.6, respectively (for each, P < 0.05). No statistical differences (P > 0.05) in mean annual decline of MMSE, ADAS-Cog, or ADAS-Mod were found among the different genotypes in the control, MCI, and AD groups, as shown in Figure 3. No statistical differences in mean variation in GDS (P > 0.05) were found among the different TSPO genotypes. HAB had a prevalence of 50.3%, MAB 41.2%, and LAB 8.5%, without statistical differences among the AD, MCI, and control cohorts.
Annual decline in mean MMSE, ADAS-Cog, and ADAS-Mod scores stratified by diagnostic group and genotype. No significant differences were found for any neuropsychologic test across the 3 genotypes (P > 0.05). Error bars show 95% CI.
The linear regression analyses of the TSPO genotypes and the mean annual decline in MMSE, ADAS-Cog, and ADAS-Mod are reported in Table 5. The multiregression analysis of mean annual decline in MMSE, ADAS-Cog, and ADAS-Mod are shown in Table 6. The TSPO genotype was not associated with the mean decline in MMSE, ADAS-Cog, or ADAS-Mod. The mean annual decline in ADAS-Mod significantly correlated with age, presence of ApoE4, diagnostic group (control, MCI, and AD), and sex. The survival analysis of ADAS-Mod changes (>3 points of the scale) performed on the entire population stratified for genotype did not reveal any significant differences (P >> 0.05) on Mantel–Cox testing (Fig. 4). Analysis of the covariates showed a significant effect on ADAS-Mod (>3 points of the scale) for diagnostic group, ApoE4, and sex (P < 0.05) but did not show any effect on age or TSPO genotype. Mantel–Cox testing including TSPO genotype as covariate in 134 amyloid-positive subjects did not reveal any significant association (hazard ratio, 1.01; 95% CI, 0.78–1.43; P = 0.72). Repeated analysis adjusting for the presence of ApoE4 did not improve the results for TSPO genotype (ApoE4 allele showed a trend in cognitive decline even if it did not reach statistical significance; hazard ratio, 1.35; 95% CI, 0.90–2.01; P = 0.16).
Regression Analysis of TSPO Genotypes and Change in Cognitive Function
Multiregression Analysis of Model Parameter as Independent Variable
Kaplan–Mayer curves of survival analysis for the 3 diagnostic groups when ADAS-Mod increased by more than 3.0 points over time. Data are stratified by genotype. Cum = cumulative.
DISCUSSION
To our knowledge, this was the first study to evaluate the influence of TSPO genotypes on the clinical phenotypes of AD and disease progression. We demonstrated that the pathologic features, clinical phenotypes, and rate of cognitive decline in AD and MCI are similar in 3 TSPO subgroups. This finding is clinically relevant considering that increasing interest in the role of microglia and neuroinflammation in AD pathophysiology has led to the development of several novel TSPO radiotracers aimed at clarifying the disease process, improving diagnosis, and marking disease progression (5,11,22). To make the assessments more robust, some studies have chosen to use only subjects who are TSPO HABs, representing around 50% of Caucasians (12). This approach will result in a selection bias of patients. Moreover, if changes in levels of microglial activation are to be used as a surrogate endpoint in future interventional AD trials, 50% of subjects could not be enrolled on the basis of their TSPO genotype. Our data suggest that evaluating a subgroup of AD subjects with HAB will still allow their clinical and amyloid PET results to be translated to the rest of the AD patients, and considering the sample size in this cohort we can conclude that this finding is robust. Amyloid burden, although measured with 2 different methods and multiple cameras, was prevalent in the 3 diagnostic groups at a level consistent with the literature (23). Additionally, the prevalence of ApoE4 was the same among the 3 TSPO subgroups in AD, MCI, and control subjects. The prevalence of 3 TSPO phenotypes in AD and MCI was consistent with the prevalence of the TSPO phenotypes in the general population: 49% for HAB, 9% for LAB, and 42% for MAB (10,12).
Longitudinal analysis has been addressed with 2 different methods to improve the quality of the data. We first analyzed the data using linear regression with mean decline over time of the cognitive test scores (MMSE, ADAS-Cog, and ADAS-Mod) as the parameter estimates, and TSPO genotype as the dependent variable. We also performed a multiregression analysis with survival function using several independent variables to assess whether other factors (age, ApoE4, sex, diagnostic group) could better explain cognitive decline. Consistent with baseline analysis, the regression analyses confirmed that the rate of cognitive decline was similar over time (up to 36 mo) between genotypes and was supported by a similar mean annual decline in change in ADAS-Cog and ADAS-Mod score or MMSE. The multiregression analysis showed similar results within diagnostic groups with different TSPO genotypes, and interestingly, for ADAS-Mod, mean annual decline correlated inversely with age, as previously reported by Holland et al. (24). The Kaplan–Mayer analysis confirmed baseline and linear regression analysis results. The covariate analysis revealed that a significant association existed only between ADAS-Mod increase (>3 points), diagnostic group (MCI, AD, control), ApoE4 status, and sex. There were inconsistencies in the literature regarding the sex differences and the annual rate of cognitive decline, but it has been suggested that men (with a larger brain volume) have higher cognitive reserve to withstand more insult (pathologic changes) than women (25), as agrees with our finding. The latter findings have already been published and were not the objective of this study (26–28). Finally, even if underpowered, the subanalysis of TSPO genotypes and the hazards of cognitive worsening in amyloid-positive subjects did not show any significant correlation even after adjusting for the presence of ApoE4 homozygote, thus suggesting that TSPO genotype seems not to have any significant interaction with amyloid deposition.
11C-PBR28 has an 80-fold higher affinity for TSPO than the first-generation TSPO tracer, 11C-PK11195. 11C-(R)-PK11195 has a significantly lower signal-to-noise ratio than 11C-PBR28 (29). However, it was found that patients exhibited different binding affinities for TSPO, falling into HAB, LAB, or MAB groups (29). This variability in binding affects modeling of radioligand binding as a proxy for microglial activation, to the extent that some studies have chosen to use only HABs to make their analysis more robust. Another second-generation ligand is 11C-DAA1106, which has much higher affinity for TSPO than 11C-(R)-PK11195 and is also influenced by TSPO polymorphisms (30). As more TSPO tracers are being used to evaluate neuroinflammation, our results demonstrating that TSPO genotype did not influence the amyloid pathology or disease progression in AD is relevant to evaluating AD patients with second-generation TSPO tracers.
At a molecular level, the TSPO protein is involved in steroidogenic cells controlling the uptake of cholesterol and thus the synthesis of neuroactive steroids (31). Allopregnanolone, an endogenous neurosteroid synthesized in the central and peripheral nervous systems in myelinating glial cells, astrocytes, and several neuronal cell types, declines with age and neurodegenerative disease (14). Costa et al. demonstrated that the Ala/Thr 147 spontaneous amino acid substitution within TSPO is able to affect pregnenolone production in a peripheral cell model, represented by circulating lymphomonocytes (13). However, it is not known to what extent TSPO genotype could affect neurosteroid synthesis such as allopregnanolone at a central nervous system level or whether it could play a role in neurodegenerative pathophysiology. Considering the number of subjects analyzed in our study at baseline and during follow-up, it seems unlikely that TSPO genotype could affect the course of the disease in AD.
A possible limitation of our study is the short follow-up. However, the length of follow-up was reasonable given the short life expectancy of AD patients (mean, 10 y) and the annual rate of conversion of MCI to AD (10%–15%). One could argue that, for novel therapeutic targets, the influence of genotype is still unknown. However, unless new potential treatments interfere with TSPO genotypes and cholesterol metabolism, it is unlikely that genotype will have an effect. Even though we have not evaluated the influence of HAB, MAB, and LAB in other neurodegenerative diseases, it is unlikely that this difference in binding is going to be clinically significant in other conditions.
CONCLUSION
We have demonstrated that all binding groups (HAB, MAB, and LAB) have the same level of amyloid deposition in AD and MCI subjects. The rate of cognitive decline was also similar in the 3 TSPO subgroups of AD and MCI subjects. We have demonstrated that the prevalence of HAB was 50.3%, whereas MAB was 41.2% and LAB was 8.5%, in AD, MCI, and control subjects. This finding implies that any information about the AD process or effects of intervention explored in a subgroup of HAB or MAB subjects using second-generation TSPO could be translated to the whole AD or MCI population. Thus, fewer AD subjects would need to be studied in evaluations of new antineuroinflammatory and antimicroglial agents in intervention studies and in observational studies evaluating the role of neuroinflammation.
DISCLOSURE
The costs of publication of this article were defrayed in part by the payment of page charges. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 USC section 1734. This research was supported by Alzheimer’s Research U.K. and, in part, by funding from the University of Pisa and from PAIM (Pisa, Italy); research travel costs from the Italian Society of Pharmacology; and grant funding from the Medical Research Council, U.K., Alzheimer’s Research, U.K., the Alzheimer’s Society, U.K., Novo Nordisk, and GE Healthcare. David J. Brooks was the chief medical officer for GE Healthcare and has received consultancy fees or honoraria from the following: Acadia Pharmaceuticals Inc., Amsterdam Molecular Therapeutics BV, AstraZeneca, Biogen Idec, NeuroNova AB, Eli Lilly and Company, Medtronic Inc., Shire Pharmaceuticals Inc., Synosia Therapeutics AG, GlaxoSmithKline, UBC Biosciences Inc., Veralis (R&D) Limited, Genentech Inc., and Navidea. No other potential conflict of interest relevant to this article was reported.
Acknowledgments
The data used in the preparation of this article were obtained from the Alzheimer’s Disease Neuroimaging Initiative database (adni.loni.ucla.edu).
